20 Ft Flat Rack Container
20 Ft Flat Rack Container
20 Ft Flat Rack Container
Open sides and top
20ft standard length
Heavy-duty steel frame
deal for oversized or heavy cargo
Perfect for machinery or vehicles
Technical information
Imperial
Metric
Dimensions
External measurement
20’ / 8’ / 8’ 6” (high)
Internal measurement
19’ 6.4” / 7’ 9.5” / 7’ 5.5”
Maximum Gross weight
74,950 lbs
Tare Weight
6,040 lbs
Payload capacity
68,860 lbs
Stacking Height
7 high at 74,960 lbs
Fork Pockets Centre Distance
6’ 8.5”
Camber (After Pre-loading)
0.6 ins
Accessories
Stanchion sockets and lashing points both sides
Structure
Spring folding, locking ends, timber floor
Designed, Built and Certified
ISO Certified
Usability
We have 20ft flat rack containers for sale, in stock, and ready to ship in the USA.
With no sides and roof, you can easily and safely maneuver a loading winch or crane to load oversized cargo.
All our 20ft flat rack shipping containers for sale are quality-tested.
Without a metallic roof and wall to worry about, you can load cargo wider or taller than the actual dimensions of the container.
We offer used 20ft flat rack shipping containers for sale to transport tractors, machinery, and construction equipment.
The container base and walls are made from solid Corten steel formulated to be lighter but as strong as construction metal.
Solid marine-grade timber floors for better traction to help keep cargo from slipping.

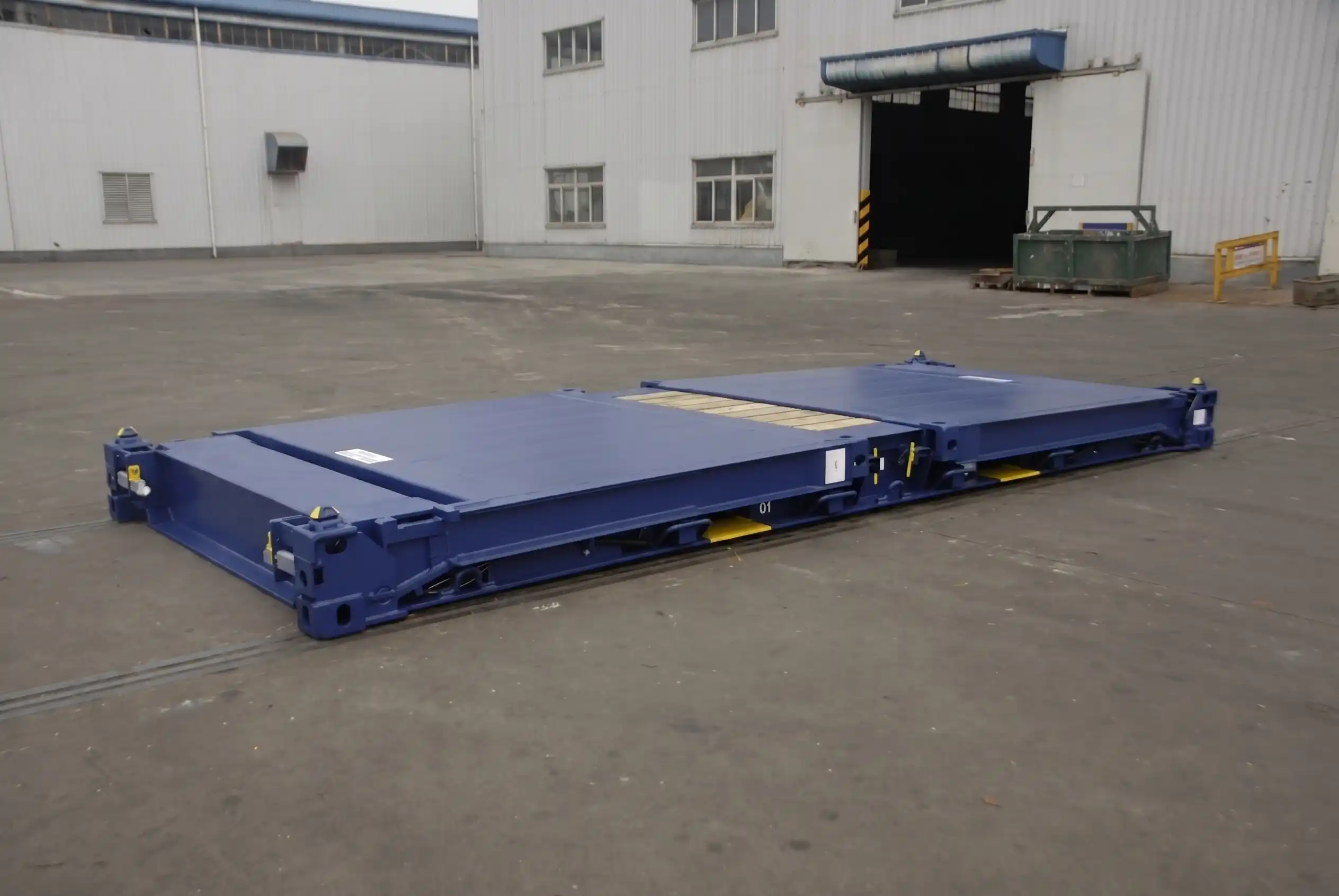

The front and end walls are collapsible, so you can fold them up and stack multiple containers on top of each other when transporting back or when not in use.
Multiple lashing points to keep cargo in place and equipped with a high-security lockbox.
Dimensions
External measurement
6m /2.43m /2.6m (high)
Internal measurement
5.8m / 2.4m / 2.3m
Maximum Gross weight
34,000 kgs
Tare Weight
2,740 kgs
Payload capacity
31,260 kgs
Stacking Height
7 high at 34,000 kgs
Fork Pockets Centre Distance
2,050mm
Camber (After Pre-loading)
15mm
Accessories
Stanchion sockets and lashing points both sides
Structure
Spring folding, locking ends, timber floor
Designed, Built and Certified
ISO Certified
Usability
We have 20ft flat rack containers for sale, in stock, and ready to ship in the USA.
With no sides and roof, you can easily and safely maneuver a loading winch or crane to load oversized cargo.
All our 20ft flat rack shipping containers for sale are quality-tested.
Without a metallic roof and wall to worry about, you can load cargo wider or taller than the actual dimensions of the container.
We offer used 20ft flat rack shipping containers for sale to transport tractors, machinery, and construction equipment.
The container base and walls are made from solid Corten steel formulated to be lighter but as strong as construction metal.
Solid marine-grade timber floors for better traction to help keep cargo from slipping.
The front and end walls are collapsible, so you can fold them up and stack multiple containers on top of each other when transporting back or when not in use.
Multiple lashing points to keep cargo in place and equipped with a high-security lockbox.
Product information
Made from 14-gauge
high-strength corrugated steel
high-strength corrugated steel
1-1/8" (28mm) marine-grade plywood floor
CSC certified
ISO-compliant
Weather & rodent-proof
Multiple air vents and latching points
Includes lockbox
Undergoes a thorough quality check before handover
Why choose Pelicancontainers?
We offer expert guidance to help you choose the ideal container for your needs, assisting you with everything from repairs and upgrades to certification and sale. You have numerous good reasons to buy used shipping containers from our company. Let’s look closer at the advantages of our services.
Thoughtfully Designed Secure Shopping Experience
Our meticulously crafted process and security system guarantee the authenticity of the ocean containers for sale available on our platform, instilling confidence in our customers. We have implemented robust security measures to monitor and resolve consumer concerns.
Certified Product Assurance
We offer 100% certified and guaranteed new and used transport containers for sale, sanctioned by the Convention for Safe Containers (CSC). Our containers boast a 100% leak-proof design, ensuring the secure transportation of goods and delivering the highest quality products.
Customer-Centric Support System
With a customer support team available 24/7, we are dedicated to addressing and resolving any product-related concerns. Those in search of a shipping container can easily connect with us through email or phone calls. We prioritize swift responses to inquiries and provide comprehensive answers to all customer queries.
Do you have any questions?
If for some reason you did not find the service or product you need, you can always leave a request for a free consultation and get an answer.
Product Description

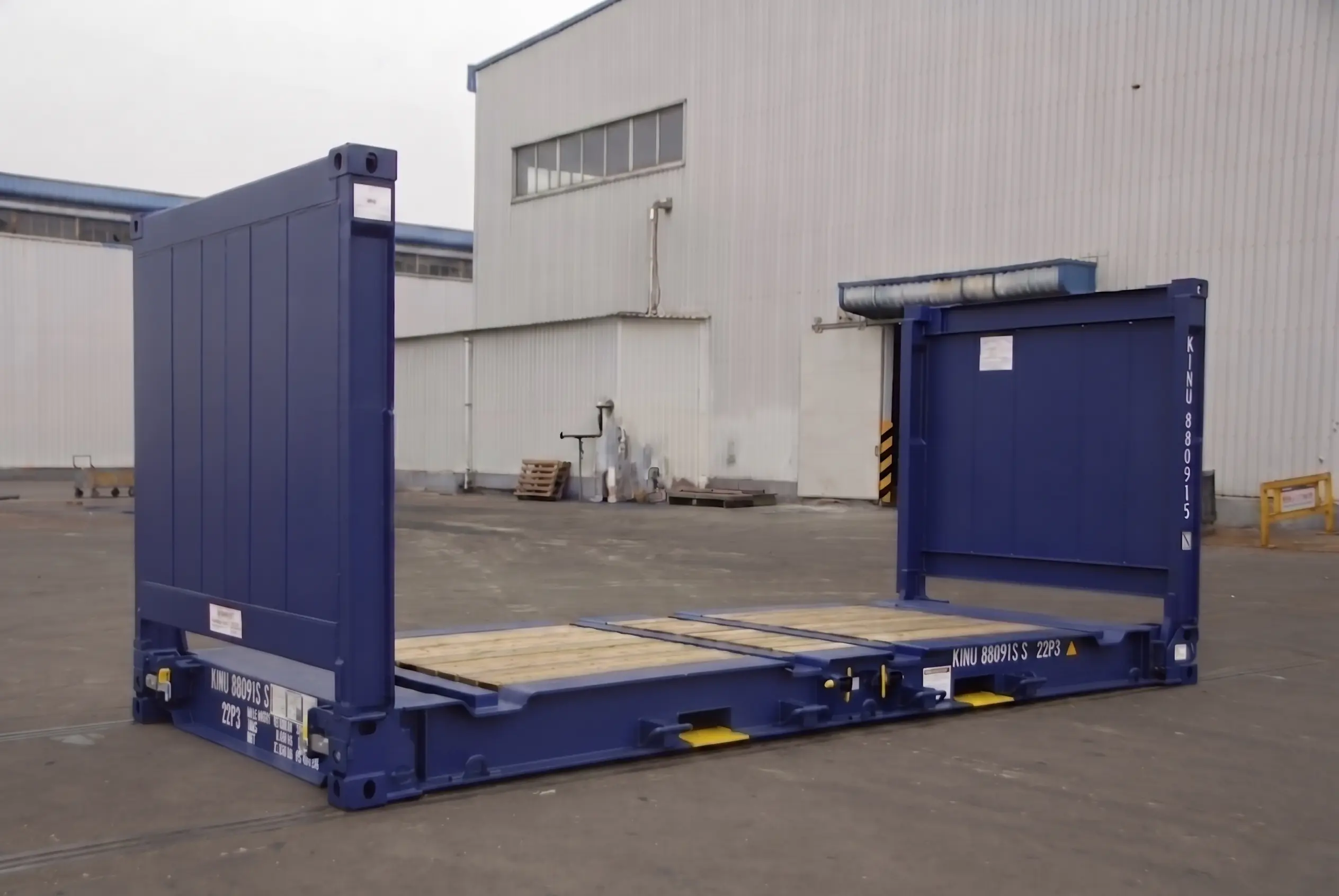

Sturdy, solid 20ft flat rack containers from Pelican Containers, made from Corten steel, can handle heavy loads, including oversized cargo, and allow for top and side loading. The 20′ flat rack provides the container with versatility and durability for safe and efficient transportation of heavy or oversized cargo.
20 flat rack containers don’t have a roof or sides, which makes it effortless to handle large cargo with a loading winch or crane. You never have to worry about cargo being too tall or wide — 20′ flat rack containers can accommodate more than the actual 20 flat rack dimensions suggest.
Our 20-foot flat rack shipping containers are quality-tested to make sure they perform at their best. They are excellent for transporting non-standard goods without dimensional constraints. For instance, a flat rack container 20ft easily carries tractors, machinery, and construction equipment. With a base and walls constructed from solid Corten steel, these units are light yet as strong as traditional construction metal.
20′ foot collapsible flat rack containers are also equipped with solid marine-grade timber floors, which keep your cargo from slipping during transport. The collapsible front and end walls allow you to stack multiple containers and fold them up when they’re not in use or while transporting them back. Such flexibility makes the 20ft platform container an excellent choice for optimizing space during return trips or when storing unused units.
Each flat rack 20ft container also has multiple lashing points to secure your cargo and a high-security lockbox for added protection.
Options A 20Ft Flat Rack Shipping Container
You’ve got the choice between brand spanking new 20ft flat rack containers and those with a bit of experience under their belt — our used containers:
- if you prefer a brand-new 20-foot flat rack container, you’ll be getting a top-of-the-line unit that meets all industry standards;
- but if you’re more about the savings, a used flat rack 20ft container could be your perfect match. You’ll still get a reliable solution but at a fraction of the cost.
New or used, a flat rack 20ft is built to handle heavy lifting when it comes to oversized cargo. We make sure that each 20ft flat rack container we offer is capable of handling rugged environments while maintaining high performance in cargo transportation.

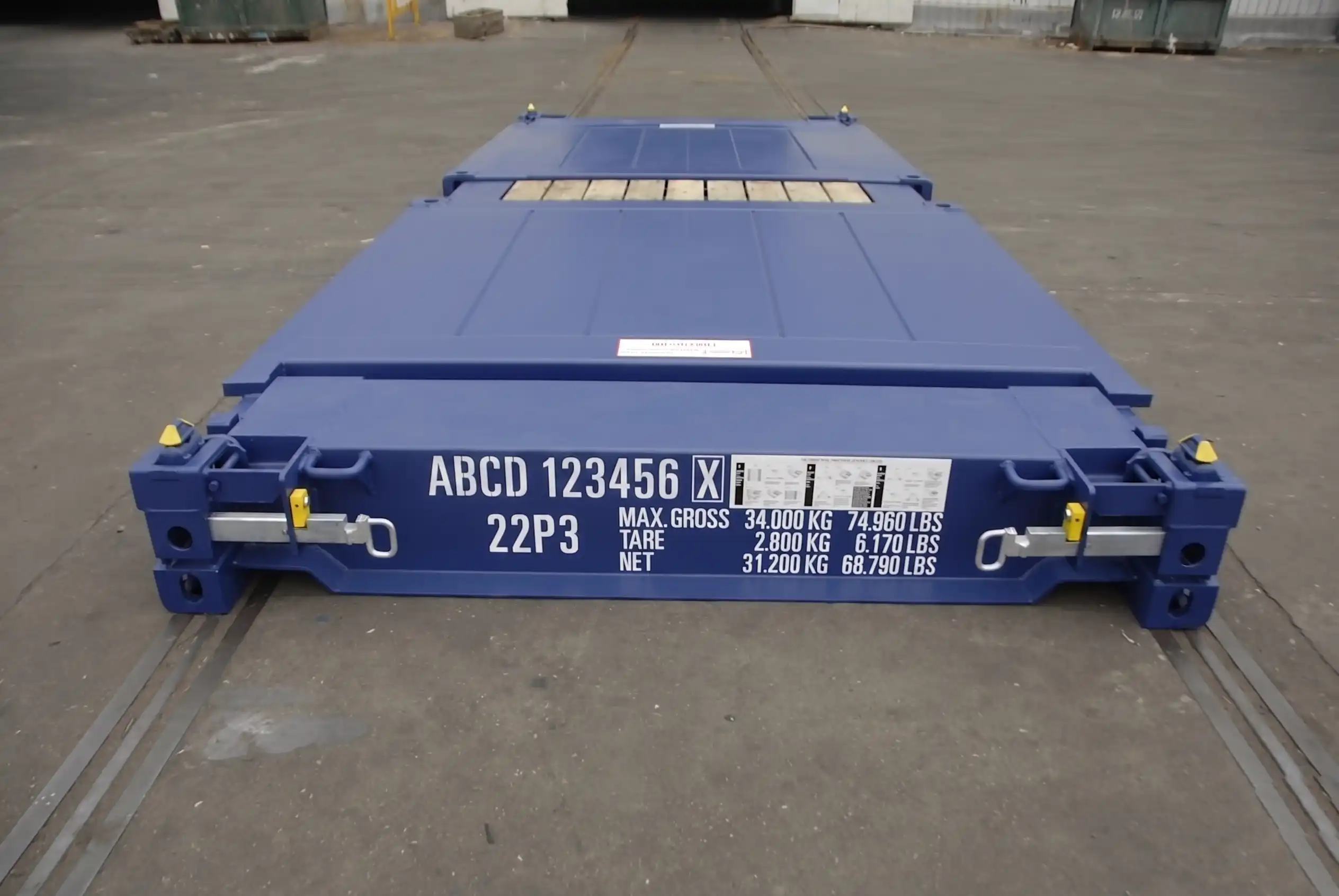

20ft Flat Rack Shipping Container Dimensions And Weight
Now, let’s talk about the 20′ flat rack container dimensions.
- these containers have an average exterior length of 20 feet, width of 8 feet, and height of 8 feet 6 inches;
- heading inside, a container has a width of 6.4 feet, a length of about 19 feet, and a height of 7.5 feet;
- a weight is about 6,040 Ibs when empty. But hold onto your hats because they can carry about 68,860 lbs of cargo.
This container is quite the beast, which can carry some long, oversized items that just won’t fit into a regular container.
Buying A 20Ft Flat Rack Shipping Container
Ready to ship across the USA, the Philippines, and India, our new and used 20′ foot collapsible flat rack containers for sale are in stock, and eager to start their journey with you.
As for the price? That depends on whether you choose to buy new or used and the quality of the container, but all our prices are competitive. Just request a quote directly from us to get an accurate price and let our specialists help you find the perfect 20ft flat rack shipping container.
Hire A 20ft Flat Rack Shipping Container
Not quite ready to purchase a 20ft flat rack shipping container? Then renting can be a better option, as it can save money for short-term or one-time shipping requirements.
We’ve got a fleet of 20′ flat rack containers just waiting to be of service, whether you need one for a month or a year. And, when you’re done, you simply return it.
So, if you decide to test the rentals, contact our helpful staff today to discuss the details.
How Is This Container Delivered?
Once you’ve ordered your 20′ flat rack container for sale, our team prepares a tilt-bed truck for delivery. When we arrive at your location, the truck bed is tilted, and the container slides off the bed onto your site. You’ll need to ensure you’ve got enough space for this to happen smoothly — around 100 feet of straight clearance for a 20ft container. To prepare the area, you can read delivery guidelines on our website or ask for our assistance.
Whether you’re after a brand new container or one that’s gently used, your thoroughly inspected container will be delivered to your place in most of the States, the Philippines, and India. To learn more, visit our website and reach out to our friendly experts.
Product Description
Sturdy, solid 20ft flat rack containers from Pelican Containers, made from Corten steel, can handle heavy loads, including oversized cargo, and allow for top and side loading. The 20′ flat rack provides the container with versatility and durability for safe and efficient transportation of heavy or oversized cargo.
20 flat rack containers don’t have a roof or sides, which makes it effortless to handle large cargo with a loading winch or crane. You never have to worry about cargo being too tall or wide — 20′ flat rack containers can accommodate more than the actual 20 flat rack dimensions suggest.
Our 20-foot flat rack shipping containers are quality-tested to make sure they perform at their best. They are excellent for transporting non-standard goods without dimensional constraints. For instance, a flat rack container 20ft easily carries tractors, machinery, and construction equipment. With a base and walls constructed from solid Corten steel, these units are light yet as strong as traditional construction metal.
20′ foot collapsible flat rack containers are also equipped with solid marine-grade timber floors, which keep your cargo from slipping during transport. The collapsible front and end walls allow you to stack multiple containers and fold them up when they’re not in use or while transporting them back. Such flexibility makes the 20ft platform container an excellent choice for optimizing space during return trips or when storing unused units.
Each flat rack 20ft container also has multiple lashing points to secure your cargo and a high-security lockbox for added protection.
Buying A 20Ft Flat Rack Shipping Container
Ready to ship across the USA, the Philippines, and India, our new and used 20′ foot collapsible flat rack containers for sale are in stock, and eager to start their journey with you.
As for the price? That depends on whether you choose to buy new or used and the quality of the container, but all our prices are competitive. Just request a quote directly from us to get an accurate price and let our specialists help you find the perfect 20ft flat rack shipping container.
Options A 20Ft Flat Rack Shipping Container
You’ve got the choice between brand spanking new 20ft flat rack containers and those with a bit of experience under their belt — our used containers:
- if you prefer a brand-new 20-foot flat rack container, you’ll be getting a top-of-the-line unit that meets all industry standards;
- but if you’re more about the savings, a used flat rack 20ft container could be your perfect match. You’ll still get a reliable solution but at a fraction of the cost.
New or used, a flat rack 20ft is built to handle heavy lifting when it comes to oversized cargo. We make sure that each 20ft flat rack container we offer is capable of handling rugged environments while maintaining high performance in cargo transportation.
Hire A 20ft Flat Rack Shipping Container
Not quite ready to purchase a 20ft flat rack shipping container? Then renting can be a better option, as it can save money for short-term or one-time shipping requirements.
We’ve got a fleet of 20′ flat rack containers just waiting to be of service, whether you need one for a month or a year. And, when you’re done, you simply return it.
So, if you decide to test the rentals, contact our helpful staff today to discuss the details.
20ft Flat Rack Shipping Container Dimensions And Weight
Now, let’s talk about the 20′ flat rack container dimensions.
- these containers have an average exterior length of 20 feet, width of 8 feet, and height of 8 feet 6 inches;
- heading inside, a container has a width of 6.4 feet, a length of about 19 feet, and a height of 7.5 feet;
- a weight is about 6,040 Ibs when empty. But hold onto your hats because they can carry about 68,860 lbs of cargo.
This container is quite the beast, which can carry some long, oversized items that just won’t fit into a regular container.
How Is This Container Delivered?
Once you’ve ordered your 20′ flat rack container for sale, our team prepares a tilt-bed truck for delivery. When we arrive at your location, the truck bed is tilted, and the container slides off the bed onto your site. You’ll need to ensure you’ve got enough space for this to happen smoothly — around 100 feet of straight clearance for a 20ft container. To prepare the area, you can read delivery guidelines on our website or ask for our assistance.
Whether you’re after a brand new container or one that’s gently used, your thoroughly inspected container will be delivered to your place in most of the States, the Philippines, and India. To learn more, visit our website and reach out to our friendly experts.
What is A Flat Rack Shipping Containers? - Pelican Containers
A flat rack is used to transport or store cargo that has unique dimensions. There are a variety of products that need to be shipped and are classified as atypical loads. Trucks, boats, and equipment parts are examples of goods that must be shipped in their entirety to their destination.
Want To Buy
A flat rack is used to transport or store cargo that has unique dimensions. There are a variety of products that need to be shipped and are classified as atypical loads. Trucks, boats, and equipment parts are examples of goods that must be shipped in their entirety to their destination.
Want To Buy
How is this container delivered?
Tilt Tray
Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.
Side Loader
Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.
Hiab Crane
Hiab cranes lift containers from a mechanism located behind the truck’s cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
