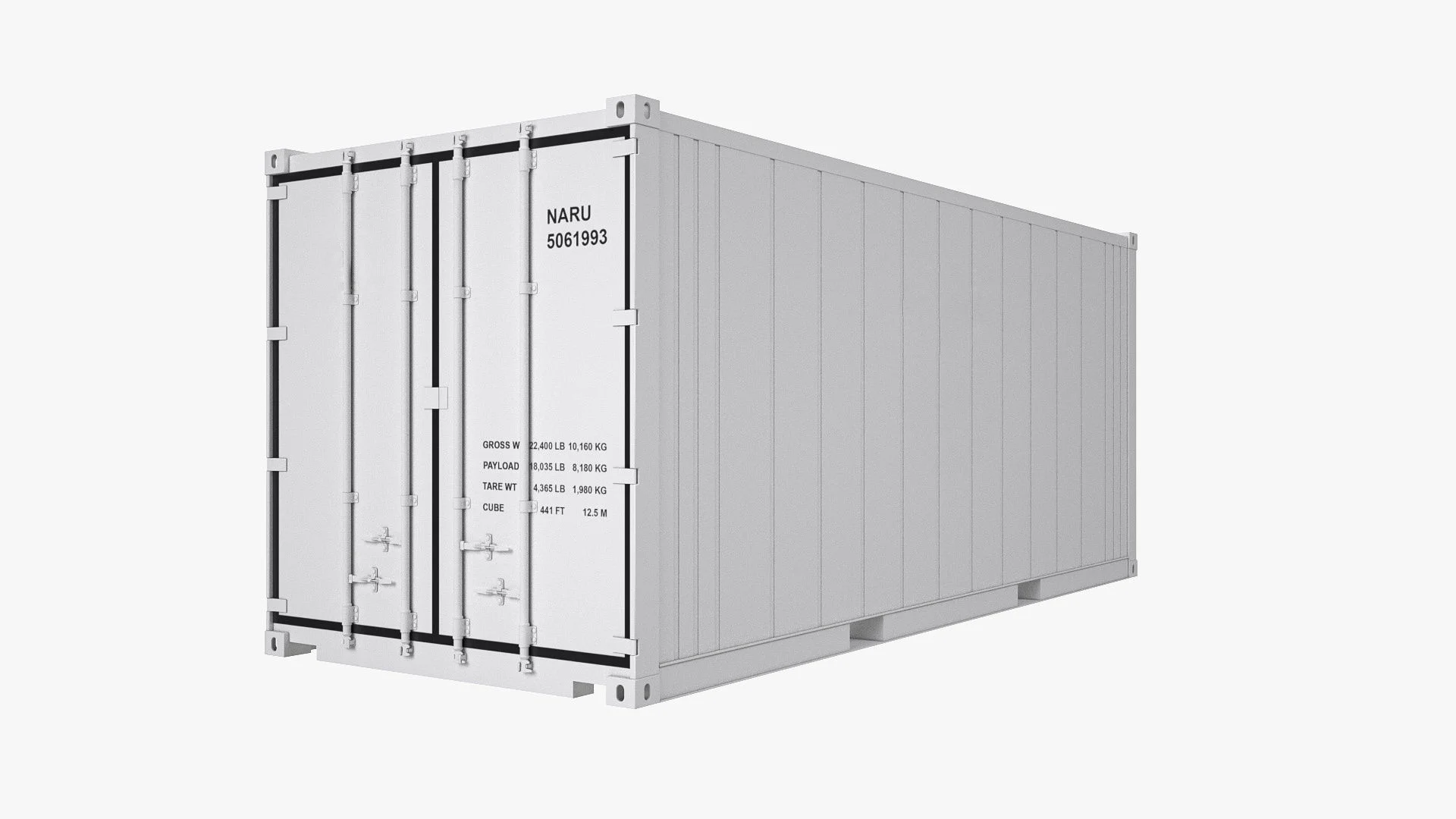

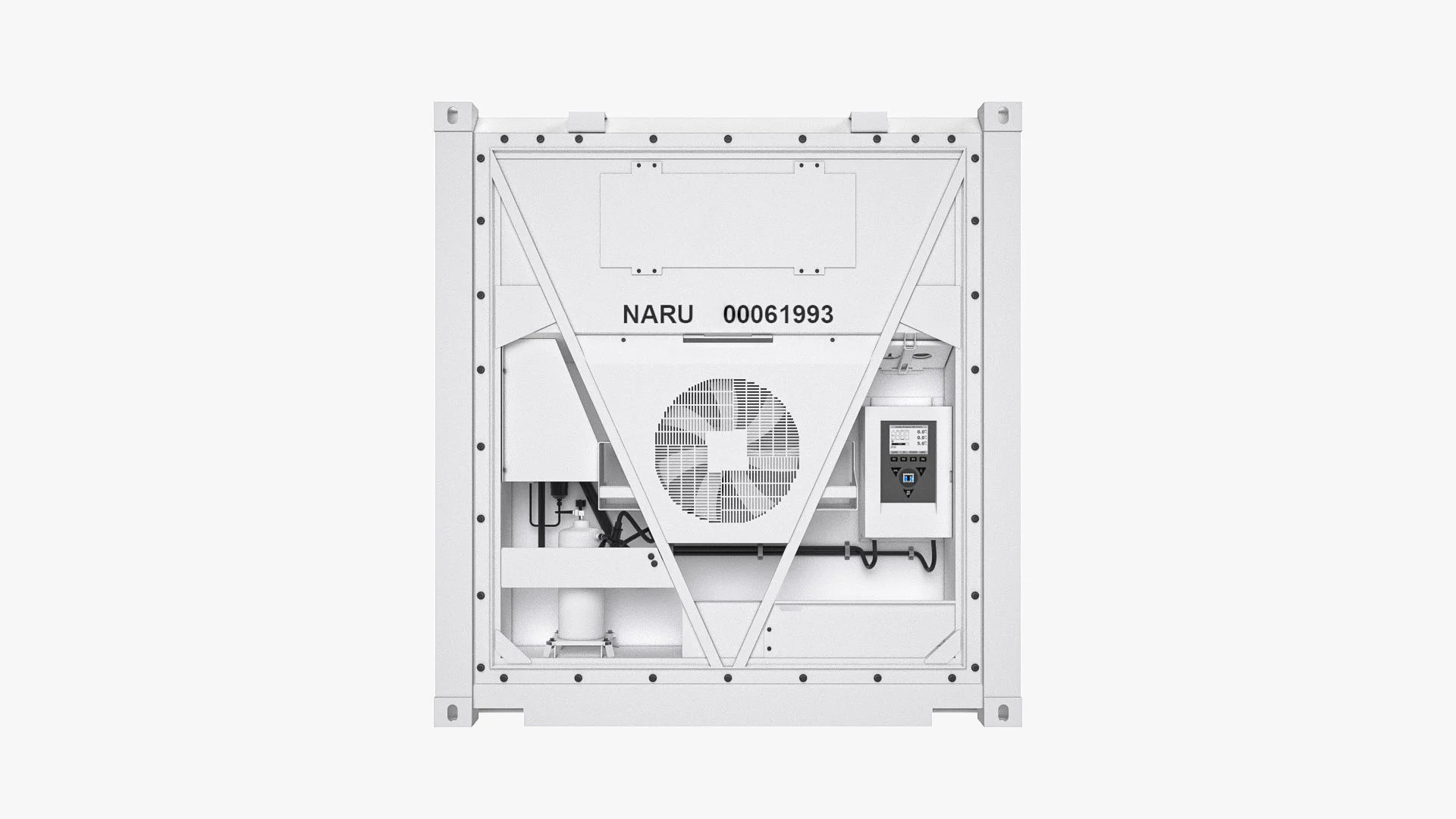

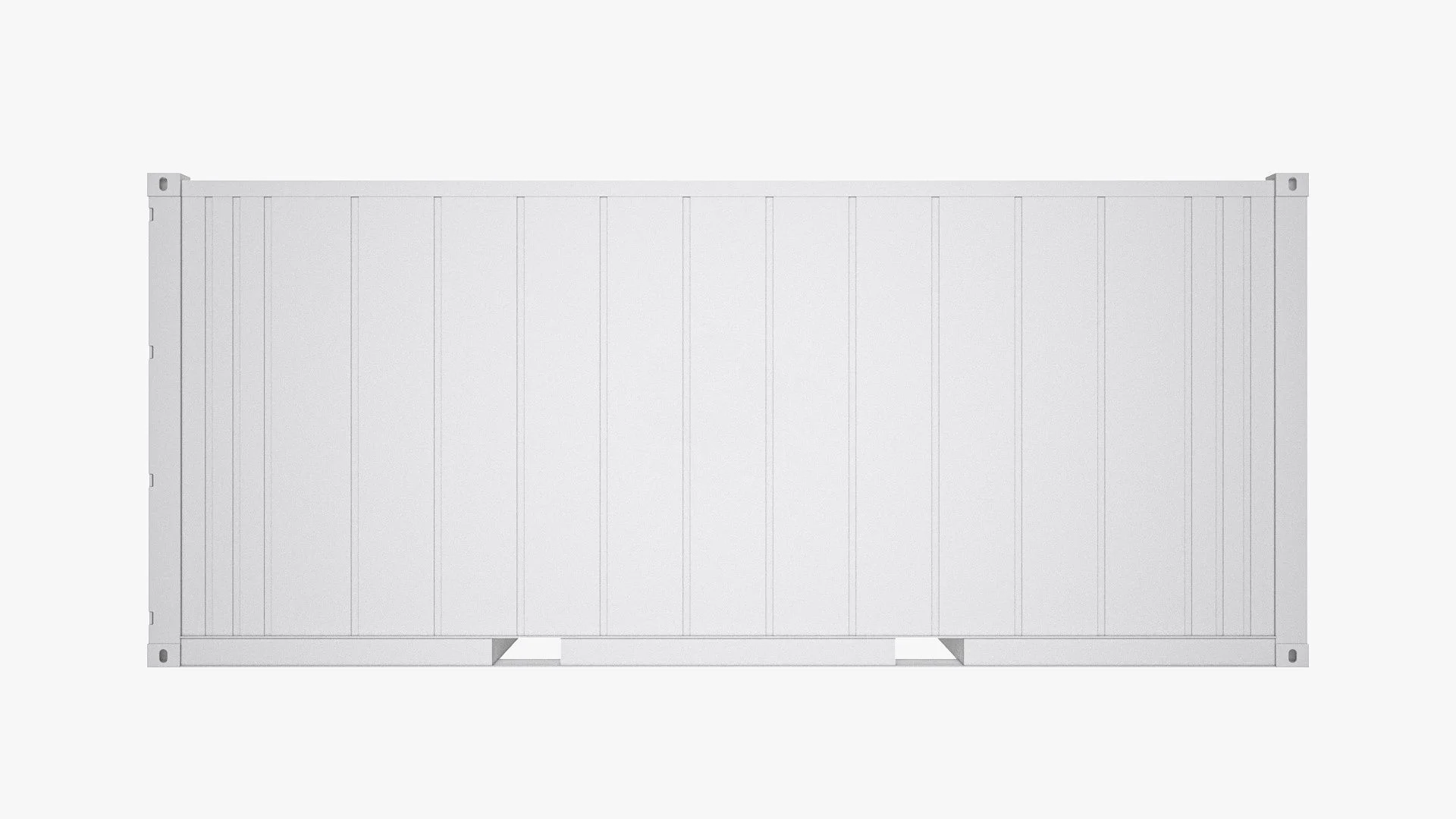

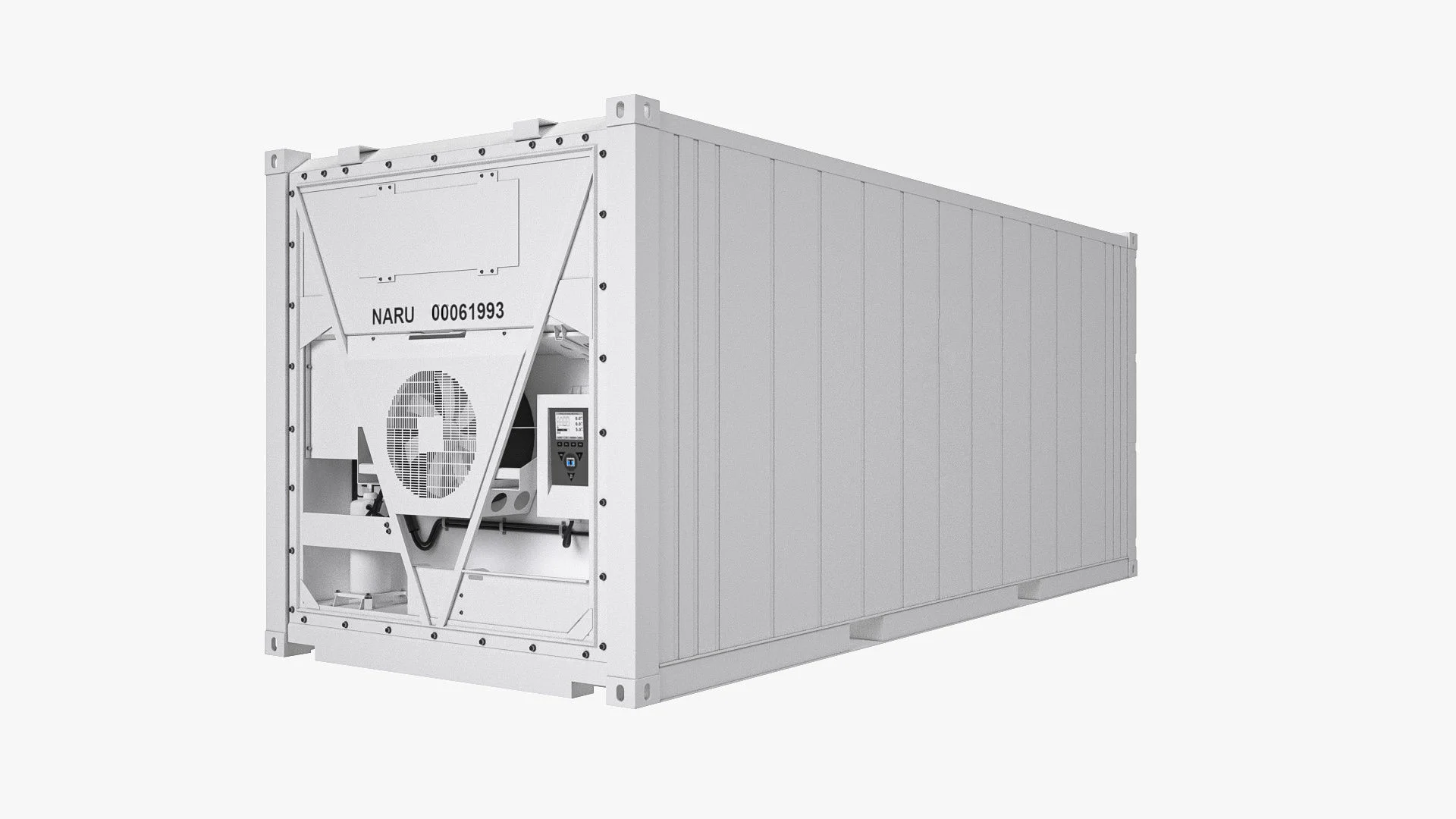

20ft Reefer Container Dimensions:

20ft reefer shipping container from Pelican Containers has the following dimensions:

External measurement 6.058m/2.438m/2.591m ( 20’/8’/8’6 )
Internal measurement 5.454m/2.284m/2.263m ( 17’11/7’6/7’5 )
Floor area 13.93 m² ( 150sqft )
Volume 28.2 m³ ( 999 cu ft )
Maximum Gross weight 30,480kg ( 67,200 lbs )
Tare Weight
3,080 kg ( 6,791.4 lbs )
Payload capacity 27,500 kg ( 60,630 lbs )
Temperature Range
-35ºC to +30ºC ( -20°F to 70°F. )
Heat Leakagekcal/deg.c.hr 23
ISO Code 22R1

20ft Reefer Shipping Container Usability and Features:

At Pelican Containers, you can find 20ft reefer shipping containers for sale with the following features:

  • Our 20ft Reefer Shipping Containers: Maintain precise temperatures (-20°F to 70°F) for perishable goods. Perfect for temperature-sensitive cargo.
  • Insulation: Well-insulated to minimize heat transfer and ensure consistent temperature maintenance.
  • Power Supply: Requires a power source for refrigeration operation, either through ship power or onboard generators.
  • Monitoring and Control: Advanced systems for real-time monitoring of temperature and humidity, with alarms for deviations.
  • Load Capacity: Can accommodate approximately 28,000 to 29,000 pounds of cargo.
  • Transportation Versatility: Suitable for shipping via ships, trucks, and trains, compatible with standard intermodal transport systems.
  • Security and Durability: Built with strong materials, like steel, and robust locking mechanisms for cargo protection.
  • Compliance and Certification: Meets international standards for transporting perishable goods, ensuring temperature integrity.

Container Buyer’s Guide

If you decide to buy a 20ft Reefer shipping container, don’t hesitate to contact us! Our staff will help you to buy used 20ft Reefer shipping containers in the needed condition and to prepare your site for delivery. You’ll avoid the frustrations and unknowns when buying a container with us.

Get the guide

You might also like

Container
Chassis
Gensets
45 foot container for sale

New

Used

WWT

45 Ft Open Side Containers

The side shutter doors come handy when someone needs to build partitions inside to stock many types of... r.

Detailed
45' flat rack container

New

Used

WWT

45 Ft Flat Rack Container

45 foot flat rack containers are extremely rare and very few companies like Pelican Containers supply them. These... r.

Detailed
45' high cube container for sale

WWT

New

Used

45 Ft High Cube Containers

These are probably the largest containers that are frequently available in the market. The extra height allows them... r.

Detailed
45 feet container

Used

WWT

New

45 Ft Standard Containers

These containers are huge with an extra five feet in length. Hence, they can act like a warehouse... r.

Detailed
40 foot open top container

New

Used

WWT

40 Ft Open Top Containers

Pelican Containers offers 40ft open top containers for sale. They are designed to exceed international standards for logistics... r.

Detailed
40' open side shipping container price

Used

WWT

New

40 Ft HC Open Side Container

These high cube containers have side shutter doors for easy loading and offloading. The cargo can be easily... r.

Detailed
40ft flat rack container

WWT

New

Used

40 Ft Flat Rack Container

These large cargo-bearing containers can be loaded from both the top and the sides. They come with two... r.

Detailed
40 ft high cube container for sale

New

Used

WWT

40 Ft High Cube Container

As big as a two-car garage, these containers store everything one puts inside of them. The extra height... r.

Detailed
40 ft containers for sale

New

Used

WWT

40 Ft Standard Container

These large containers usually carry bulky yet lighter cargo because of their payload of 29 tons, which is... r.

Detailed
open top container for sale

New

Used

WWT

20 Ft Open Top Containers

Containers we offer are specially designed to keep your valuables safe during long-haul transport. We offer 20ft open... r.

Detailed
20 ft side opening shipping container for sale

Used

WWT

New

20 Ft Side Open Containers

Our 20 foot side opening containers are an excellent choice for businesses that transport large items, which can’t... r.

Detailed
flat rack shipping container

New

Used

WWT

20 Ft Flat Rack Container

Flat rack containers are used mainly for the transportation of oversized cargo, which can be loaded from the... r.

Detailed
20 ft container

New

Used

WWT

20 Ft Standard Container

20ft shipping containers are probably the most popular varieties of shipping containers. Neither too big nor too small—these... r.

Detailed
20' container chassis

New

Used

WWT

20 Ft Shipping Container Chassis

Pelican Containers offers 20ft foot container chassis for sale. They consist of a number of forms like flushback... r.

Detailed
container chassis

New

Used

WWT

Buy 40ft Gooseneck 2-AXLE chassis in the United States

These chassis are made from high strength low alloy steel to make them strong enough for the transportation... r.

Detailed
clip on genset

Used

WWT

New

Gensets (Clip On)

A clip-on generator set for reefer containers attaches to the front of the refrigerated container and allows you... r.

Detailed
genset chassis

New

Used

WWT

Gensets (Undermount)

An undermount generator is securely fastened to the truck's container chassis. This generator set is specifically designed to... r.

Detailed

How is this container delivered?

Tilt Tray

Tilt tray delivers a container off the back of the truck. Similar to a tow truck, the tray is mechanically lowered at an angle, and the container is slid off, with the truck moving forward at slow speed. This is the most common delivery method used for containers. Tilt trays are not suitable for sites with overhead power lines as the container height increases significantly when tilted.

Side Loader

Side loaders are used to transport our 20 foot and 40 foot shipping containers. This is the best delivery method for containers at sites that have limited space either in front or behind the area where the container is to be positioned. The container is unloaded between the two outrigger feet of the side loader, approximately half a metre from the side of the truck.

Hiab Crane

Hiab cranes lift containers from a mechanism located behind the truck’s cabin. This is used when there is limited space for a side loader or tilt tray. Using a crane means the container is easily positioned at an angle or up on a raised area. It can also be used to place containers over a fence or other obstacles.
