40ft Standard Double-door Tunnel Container
40ft Standard Double-door Tunnel Container

40ft Standard Double-door Tunnel Container

Condition: New
0ft Flexible Payment Plans
0ft Fast Delivery: 2-5 Business Days
0ft Trusted Partner Since 2017
0ft
Have questions?
Chat with a Container Expert
Our team will help you find the right container for your operation
0ft
Product Specification Sheet Download Spec Sheet
Overview
Specs
Delivery
Payments & Financing
Warranty
FAQ
Overview

What Is a 40ft Double Door Shipping Container?

A 40ft double door shipping container, also called a 40ft tunnel container, has full cargo doors at both ends of a 40′ × 8′ × 8’6″ steel box. Inside you get about 39’4″ of length and 2,380 cubic feet of space, and you can load at one end and unload at the other.

In a single-door 40ft container, the back wall is nearly 40 feet from the only way in, and whatever sits there is hard to reach. With doors at each end, nothing inside is more than about 20 feet from a door. Stock can flow in one end and out the other, and two crews can work the container at the same time.

Both door sets have locking bars and rubber seals, on a Corten steel body with a marine plywood floor. At 8’6″ tall, this tunnel container suits pallets, tools, materials and most machinery. For loads that need more headroom, the 40ft high cube tunnel container is 9’6″ tall on the same footprint. If you don’t need the full length, the 20ft standard tunnel container gives you the same doors in half the space, and if you’d rather reach everything from the long side, look at our open side containers. You can compare every size of double door shipping containers.

We sell new one-trip, used and refurbished (wind and watertight) 40ft tunnel containers through our network of 150+ depots and match you with stock near your site. Compare the container condition grades, then request a quote with your ZIP code: the container price and the delivery charge come as separate lines.

What Is a 40ft Tunnel Container Used For?

Warehousing and first-in, first-out stock

Load new stock through the rear doors and ship the oldest from the front. Distributors, retailers and farms use the layout for pallets, feed, packaging and seasonal goods that need to rotate.

Job sites and long materials

Pipe, lumber, rebar and other long items slide in one end and out the other without being turned inside the box, and crews reach tools from whichever door is closer. More layouts are on our construction site storage page.

Two 20ft storage areas in one container

A partition wall at the middle gives you two rooms of about 19 feet each, and each room has its own lockable doors. Two tenants can share one box that way, or you can keep tools apart from stock. A fabricator or your contractor installs the wall; we supply the container.

Vehicles, equipment and covered walkways

The door openings at both ends are about 7’8″ wide, so with a pair of ramps you can drive equipment in one end and out the other. Contractors also set 40ft tunnels on building sites as covered walkways. Check the 7’6″ door height against your tallest load first.

40 ft double door shipping container
Specs
0ft

Dimensions

External (L x W x H)
40' 0" × 8' 0" × 8' 6"
12.192 m × 2.438 m × 2.591 m
Internal (L x W x H)
39' 4" × 7' 8" × 7' 10"
11.978 m × 2.352 m × 2.393 m
Door opening, each end (W x H)
7' 8" × 7' 6"
2.343 m × 2.280 m
Floor area
303 sq ft
28.17 m²
Volume
2,380 cu ft
67.4 m³
Max gross weight
67,200 lbs
30,480 kg
Payload
~59,310 lbs
~26,900 kg
Tare weight
~7,890 lbs
~3,580 kg
Floor
1-1/8" marine plywood
28 mm marine plywood
Designed, built and certified
ISO 1496-1, TIR, UIC, CSC and ABS approved
Delivery

Delivery in 2–5 Business Days to All 50 States

We deliver 40ft tunnel containers to all 50 states, usually within 2–5 business days of your order, from a depot near your site. Our container delivery page walks through the process, and city pages such as Chicago cover buying near you.

Plan for a 40-foot drop and doors at both ends

A 40ft container needs a long, straight approach for a tilt-bed truck; our delivery guidelines give the clearances to plan for. Plan room at both ends too: each door leaf is close to 4 feet wide and swings outward, so leave at least that much clear space in front of each end, more if you will drive or forklift through. Tell us which end should face the road, and set the container on level, firm footing so the frame stays square and all four doors seal.

Delivery Methods
0ft Best for Level Ground

Tilt Bed Delivery

Our most common delivery method for 20-foot and 40-foot containers. The truck's bed tilts toward the ground and the container slides off the rear, no crane or forklift needed on your end.
0ft Multiple units

Flatbed delivery

A cost-effective option, especially when delivering multiple containers at once. Keep in mind you'll need a forklift or crane on-site to unload, the truck doesn't carry lifting equipment.
0ft For tight spaces

Crane truck delivery

The truck's onboard crane lifts and places the container exactly where you need it over fences, into narrow yards, or onto uneven ground. The best option when access to your site is limited.
View Full Delivery Guidelines
Payments & Financing

Payments

Your quote shows two lines: the container price at the depot and the delivery charge to your site, at today’s rate for your ZIP code. We accept Visa, Mastercard, American Express and PayPal, and our payment options page explains how payments are verified. Business buyers can download our Form W-9 from the Help Center. If you hold a lower verified quote for the same container and delivery, send it to us under our Best Price Guarantee.

Financing

Tunnel containers are sold only, so rental and rent-to-own plans don’t apply to this model. Business buyers can spread the cost through Clicklease, our third-party leasing partner: Clicklease pays us for the container, and you make fixed monthly payments with the option to own it at the end of the lease. Approval and terms come from Clicklease.

Blue and white directional arrows against a cloudy sky with the word PAYMENT prominently displayed on a large blue arrow
Warranty
3-year warranty badge for shipping containers featuring no leaks guarantee, tight-sealing doors, and reliable floors alongside a white cargo container

Warranty on Your 40ft Tunnel Container

New one-trip 40ft tunnel containers come with our 3-year no-leaks warranty, counted from the purchase date.

Coverage includes:

  • No leaks through the walls, roof or doors
  • Door seals that close tight on both door sets
  • Floors free of holes and soft spots

Not covered:

  • Cosmetic marks such as scratches, dings and surface rust
  • Damage from misuse, accidents or moving the container without the right equipment
  • Extreme weather beyond what containers are built for, and changes made without checking with us
  • Anything stored inside

Whatever grade you buy, if the container you receive doesn’t match the grade on your quote, we replace it, as set out in Our Guarantee. To make a warranty claim, send your invoice number, a few photos and a short description of the problem.

FAQ

Frequently Asked Questions

About the container

Is a 40ft tunnel container the same as a 40ft double door container?

Yes. Tunnel container, double door container and container with doors on both ends all name the same design: a 40ft shipping container with a full set of cargo doors at each end. Open both and you can see straight through, which is where the tunnel name comes from.

What are the inside dimensions of a 40ft double door container?

About 39'4" long, 7'8" wide and 7'10" tall (11.978 × 2.352 × 2.393 m), for roughly 2,380 cubic feet (67.4 m³). Each end has a door opening about 7'8" wide by 7'6" high. Exact figures vary slightly by manufacturer.

How much weight can a 40ft tunnel container carry?

Maximum gross weight is 67,200 lbs (30,480 kg). The container weighs about 7,890 lbs (3,580 kg) empty, which leaves a payload of about 59,310 lbs (26,900 kg). Spread heavy loads along the floor rather than in one spot.

How does a 40ft tunnel container compare with a 20ft one?

Same height and the same doors, twice the length: about 2,380 cubic feet against 1,162, and 303 square feet of floor against 148. It needs a bigger footprint and a longer approach for the delivery truck, so measure the site before you choose.

Should I choose a standard or high cube 40ft tunnel container?

Choose the standard 8'6" model for pallets, materials and most machinery. Choose the 9'6" high cube if your tallest load is close to the 7'6" door height, or if you want headroom for racking, insulation or a ceiling. Both have the same 40' × 8' footprint.

Can a 40ft tunnel container be split into two storage areas?

Yes. A partition wall across the middle creates two rooms of about 19 feet each, and each one opens from its own end. The wall is a modification: a fabricator or your contractor installs it after delivery, and we supply the base container.

Payments & buying

Can I rent a 40ft double door container?

No. Tunnel containers are sold only. Business buyers can spread the cost by leasing one through Clicklease, subject to their approval.

How much does a 40ft double door shipping container cost?

It depends on the condition (new one-trip, used or refurbished), the depot nearest to you and the delivery distance. Your quote lists the container price at the depot and the delivery charge separately, at today's rate for your ZIP code.

What warranty comes with a 40ft tunnel container?

New one-trip units come with our 3-year no-leaks warranty from the purchase date, covering leaks, the door seals on both ends and floors free of holes or soft spots. Cosmetic wear, misuse and stored contents are not covered.

Delivery

How fast can you deliver a 40ft tunnel container?

Usually within 2–5 business days of your order, anywhere in the 50 states, from a depot in our network near your site. Your quote confirms the date.

What do I need on site for a 40ft delivery?

Level, firm ground, a long straight approach for the truck (our delivery guidelines give the clearances) and about 4 feet of open space in front of each end so both door sets can open. Tilt-bed delivery needs no equipment on your side; flatbed delivery needs a forklift or crane to unload.

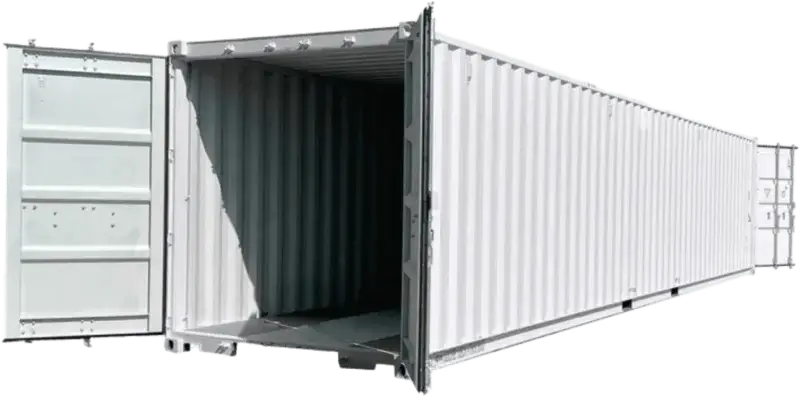

Compare Tunnel Containers: 20ft Standard vs 40ft High Cube vs 40ft Standard

Same double-door design, different length and height. See what twice the floor or an extra foot of headroom gets you before you choose.
Dimensions
0ft
External (L x W x H)
20'/8'/8'6"
6.058 m / 2.438 m / 2.591 m
0ft
Internal (L x W x H)
19'2"/7'8"/7'10"
5.844 m / 2.352 m / 2.393 m
0ft
Door (W x H)
7'8" / 7'6" (W/H)
2.343 m / 2.286 m
0ft
Volume
1,162 ft³
32.9 m³
0ft
Tare Weight
~5,070 lbs
~2,300 kg
0ft
Payload
~62,130 lbs
~28,180 kg
0ft
External (L x W x H)
40'/8'/9'6"
12.192 m / 2.438 m / 2.896 m
0ft
Internal (L x W x H)
39'4"/7'8"/8'10"
11.978 m / 2.352 m / 2.698 m
0ft
Door (W x H)
7'8" / 8'6" (W/H)
2.343 m / 2.585 m
0ft
Volume
2,684 ft³
76.0 m³
0ft
Tare Weight
~8,270 lbs
~3,750 kg
0ft
Payload
~58,930 lbs
~26,730 kg
0ft
External (L x W x H)
40'/8'/8'6"
12.192 m / 2.438 m / 2.591 m
0ft
Internal (L x W x H)
39'4"/7'8"/7'10"
11.978 m / 2.352 m / 2.393 m
0ft
Door (W x H)
7'8" / 7'6" (W/H)
2.343 m / 2.280 m
0ft
Volume
2,380 ft³
67.4 m³
0ft
Tare Weight
~7,890 lbs
~3,580 kg
0ft
Payload
~59,310 lbs
~26,900 kg
